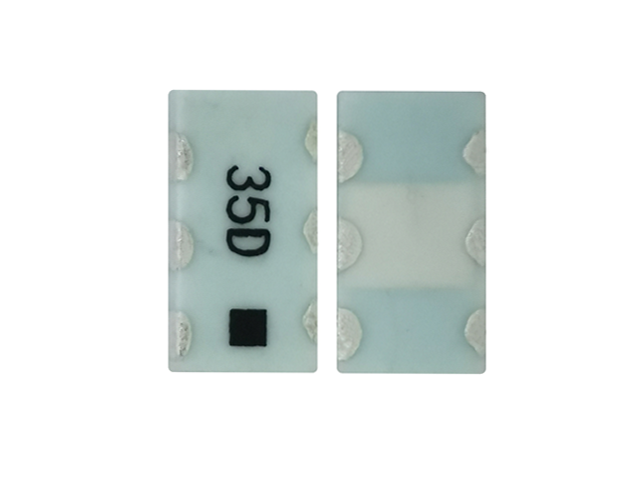

YLHP series of LTCC High pass

YLHP series of LTCC High pass filters

Features:

1,Own production line to ensure the order processing schedule,The frequency characteristic can be adjusted according to different needs

2,The LTCC production line with the longest construction time in China has rich production experience.At the same time, it meets the requirements

of miniaturization and passband consistency

3,High pass filters are designed and integrated directly into the substrate, Ensure that 5,different products are controlled according to the corresponding quality level

Technical features:

1,Passive integrated multi-layer LTCC process, small size, high integration, high reliability

2,SMT, 50 Ω Impedance matching, stable electrical performance

3,Can be designed according to customer requirements, to provide customized services

Applications:

Bluetooth, WiFi, satellite communication, GPS navigation, etc


  • Model name
  • Cut-off Frequency
    (cut-off frequency)MHz
  • Bandwidth
    MHz
  • S21
    (Insertion loss-Max)dB
  • Attenuation(attenuation)
  • VSWR in BWStanding wave ratio
  • YLHP-1000-D4-W7.8
  • 1080
  • 1080-4000
  • 2
  • S21≥1.4dB@1.15GHz-3.7GHz S21≥2.0dB@1.08GHz-4.0GHz S21≥20dB@0.1GHz-0.57GHz S21≥40dB@0.1GHz~0.74GHz
  • 1.5
  • YLHP-1100-D4-W7.8
  • 1300
  • 1300-3900
  • 2
  • S21≥1.4dB@1.4GHz-3.5GHz S21≥2.0dB@1.3GHz-3.9GHz S21≥20dB@0.1GHz-0.53GHz S21≥40dB@0.1GHz-0.7GHz
  • 1.5
  • YLHP-1300-D4-W7.8
  • 1400
  • 1400-4500
  • 2
  • S21≥1.4dB@1.51GHz-4.0GHz S21≥2.0dB@1.4GHz-4.5GHz S21≥20dB@0.1GHz-0.93GHz S21≥40dB@0.1GHz-0.69GHz
  • 1.5
  • YLHP-1500-D4-W7.8
  • 1600
  • 1600-4500
  • 2
  • S21≥1.4dB@1.7GHz-4.0GHz S21≥2.0dB@1.6GHz-4.5GHz S21≥20dB@0.1GHz-1.05GHz S21≥40dB@0.1GHz-0.84GHz
  • 1.5
  • YLHP-1600-D4-W7.8
  • 1600
  • 1700-5000
  • 2
  • S21≥1.4dB@1.95GHz-4.5GHz S21≥2.0dB@1.7GHz-5.0GHz S21≥20dB@0.1GHz-1.25GHz S21≥40dB@0.1GHz-1.0GHz
  • 1.5
  • YLHP-1760-D4-W7.8
  • 1900
  • 1900-5200
  • 2
  • S21≥1.4dB@2.0GHz-4.8GHz S21≥2.0dB@1.9GHz-5.2GHz S21≥20dB@0.1GHz-1.23GHz S21≥40dB@0.1GHz-1.0GHz
  • 1.5
  • YLHP-1810-D4-W7.8
  • 1900
  • 1900-5000
  • 2
  • S21≥1.4dB@2.1GHz-4.6GHz S21≥2.0dB@1.9GHz-5.0GHz S21≥20dB@0.1GHz-1.3GHz S21≥40dB@0.1GHz-1.05GHz
  • 1.5
  • YLHP-1910-D4-W7.8
  • 2000
  • 2000-5200
  • 2
  • S21≥1.4dB@2.2GHz-4.4GHz S21≥2.0dB@2.0GHz-5.2GHz S21≥20dB@0.1GHz-1.38GHz S21≥40dB@0.1GHz-1.1GHz
  • 1.5
  • YLHP-2000-D4-W7.8
  • 2100
  • 2100-6200
  • 2
  • S21≥1.4dB@2.3GHz-5.5GHz S21≥2.0dB@2.1GHz-6.2GHz S21≥20dB@0.1GHz-1.48GHz S21≥40dB@0.1GHz-1.2GHz
  • 1.5
  • YLHP-2100-D4-W7.8
  • 2200
  • 2200-6000
  • 2
  • S21≥1.4dB@2.4GHz-5.5GHz S21 ≥2.0dB@2.2GHz-6.0GHz S21≥20dB@0.1GHz-1.58GHz S21≥40dB@0.1GHz-1.3GHz
  • 1.5
